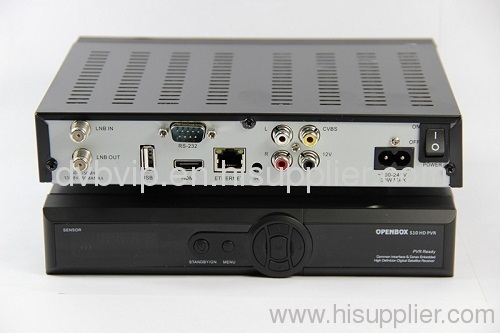

MPEG4 HD DVB-S2 the new model Openbox S10 HD receiver cover all functions of S9,

but most cost effective
               -PVR
               -HDMI
              -ETHERNET PORT,can work with CCCAM,and sharing with dm box server
              - MPEG4 H.264
            -RS232 INTERFACE
              -SCART AND RCA PORTS
              -CA and CI ( DM800HD without CI )

MAIN FEATURES
1.Receive Digital High Definition (HD) MPEG4 HD DVB-S2 and Standard Definition (SD) Satellite Signal
2.Supports DVB-S,DVB-S2,MPEG-2 & MPEG-4
3.Digital Video Recorder through USB (external flash or hard drive are not included)
4.The most affordable FTA HD receiver on the market today.
5.Worldwide compatible
6.Hardware Blind Search DVB-S and DVB-S2 (fast search less than 2 Minutes on most satellites)
7.Linux System
8.HD DVB-S2 SHARP 7306 Tuner

General Specifications:
300 MHz MIPS Processor - Linux Operating System
Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
Fully compliant MPEG-2 MP@HL & MP@ML;
Fully compliant MPEG-1 Layer I & II & III,Dolby Digital Audio(AC3);
SCPC & MCPC receivable from C/Ku band satellites;
multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported)
NIT search supported;
Support MHEG-5;
Support HDMI 1.3;
Support PVR(store in USB disk);
Multimedia files playback(by USB);
Support Electronic Program Guide(EPG) for 7 days;
Teletext and subtitle out through OSD;
Support multi-lingual DVB subtitle and teletext;
Automatic and manual channel scan options;
automatic service scan
channel-change time < 1 second
OSD in many languages and skin-support

Multilingual support on screen menu (OSD): English,French,Deutsch,Italian,Spanish,Swedish,Danish,Greece,Portuguese,Finland,Holland,Turkish,Czech,selectable;
LED Display
Multiple display mode: 1080i/720p/570p/576i/480p;
MPEG-2 / H.264 Hardware decoding
Videotext Decoder
Analog audio output: stereo(L+R);
Digital audio output: S/PDIF by coaxial and optical;
S/PDIF Interface for digital bit stream out (AC-3)
YCbCr available;
2 x Scart (RGB,FBAS or S-Video)
Screen format:auto,4:3,and 16:9;
Upgrade software through USB2.0 port;
Powerful program management function,parent lock;
CA 1x slot and CI 1xslot
10/100Mbit Ethernet Interface
directly bouquet-lists

Packing:
Git box:32.5*31.5*8.5CM
1x User Manual
1X S9 HD PVR satellite receiver
1X Remote Control

DVB-S2
Input Frequency:950~2150MHz
Loop Out Frequency:950~2150MHz
Input Level:-65~-25dBm
Input Impedance:75¦¸
LNB Power: Auto/14v/18v/OFF,Imax = 500mA
Video decoder
Video Compression MPEG-2 and MPEG-1 compatible,H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Audio decoder
Audio Compression MPEG-1 & MPEG-2 Layer I and II,MP3
Audio Mode Dual (main/sub),Stereo
Frequency: 32 kHz,44.1 kHz,48 kHz,16 kHz,22.05 kHz,24 kHz
Output digital
Output Level 0, 5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz,44.1 kHz,48 kHz
S/PDIF-Output optical,Toslink

Video parameter
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart
Output: FBAS,RGB,S-Video
Serielle Interface RS 232
Typ RS232 bidirectional
Bit rate 115, 2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware
Ethernet
10/100 MBit compatible interface
Function: Update of Firmware
USB
1 x USB 2.0 Host , PVR
LNB power and polarisation per tuner
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load,> 11, 5V at 400mA
LNB Voltage horizontal < 20V no load,> 17, 3V at 400mA
Count of active satellite position
DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
External PSU
Input:110-240V AC / 50-60Hz / 0, 6A
Output: 12V = / 3, 0A
